DVB-T Модулатор Превземи спецификација

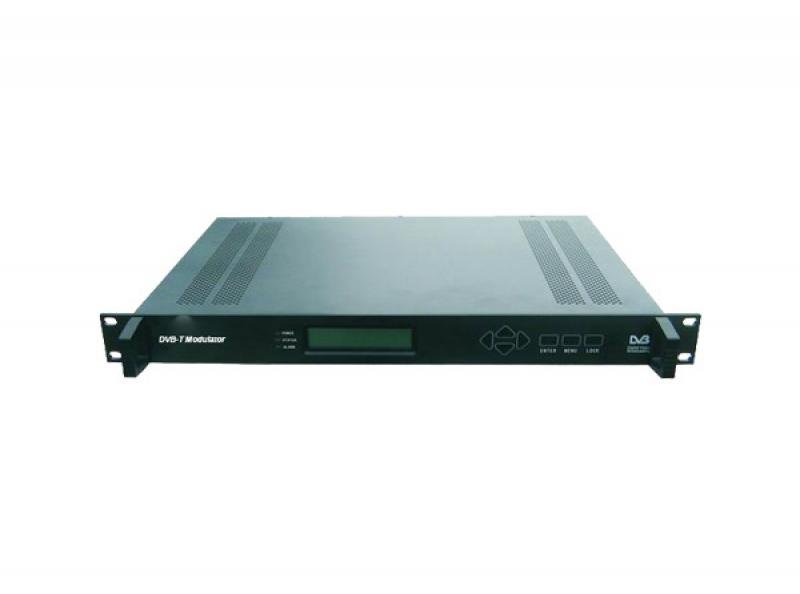

DVB-T Modulator is made according to DVB-T standard output the RF signals, which can be transmitted through HFC and MMDS networks. It is widely used in digital TV, data broadcasting, VOD, Internet, video conference systems. The WDQ-3300 has very convenient management interface, the user can complete all operation via local keyboard and LCD display on device, or access through the Ethernet port on device.

• Compliant to EN300744 standard
• Support 6MHz/7MHz/8MHz band width
• Error correction follows DVB-T standard
• Operable in QPSK, 16QAM, 64QAM mode
• Support 2K/8K carrier-wave operating mode
• Input interface: ASI and SPI(DS3/E3 optional)
• Input bit rate:1.5~31.67Mbps
• Output band width: 6/7/8MHz
• 188 and 204 packet automatic identification, shows real-time data format
• Advance output TS efficiency
• Capable of NIT mapping and sending; supports over 44 NIT mapping frequency
• Holds 8 groups of PID filtering and re-mapping function
• Support all PSI/SI data abstraction, modification and analysis
• Null packet filtering and filling
• Performs multiple PCR correction simultaneously
• Monitor and test real-time enter/valid bit rate
• Self-adjust filter circuit design in order guarantees superb SNR (out of band)
• -20dB RF test output is available (IF output is options)
• Failure alarming and power off memory
• Local keyboard control and LCD display, or access via Ethernet link
